Creating Modular Weights - V2 - Belt Loop Weights¶

Goal¶

Add adjustable back-hanging ballast that clips into the existing neck-collar loop, using a 60 mm belt with removable 500 g weights.

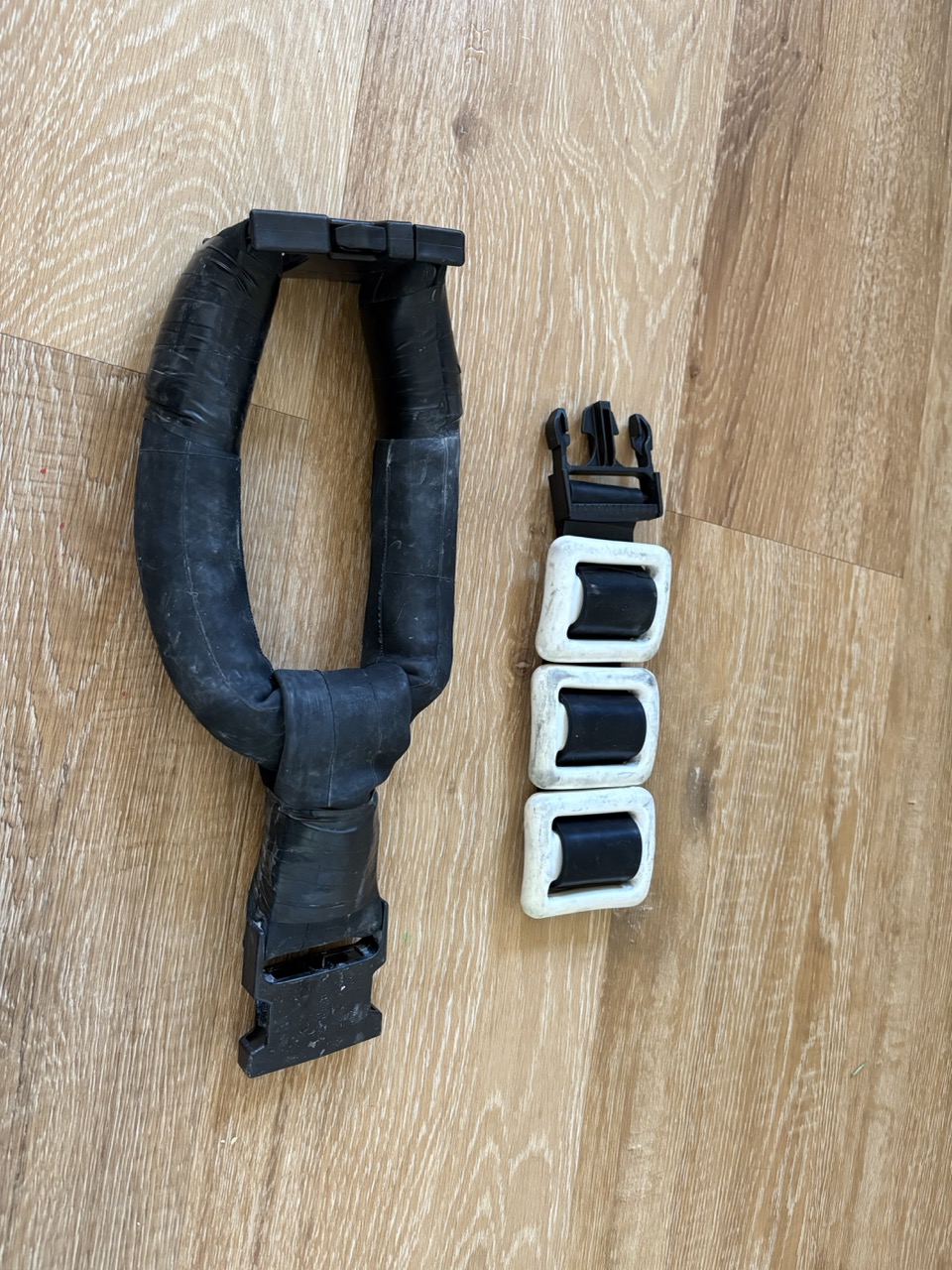

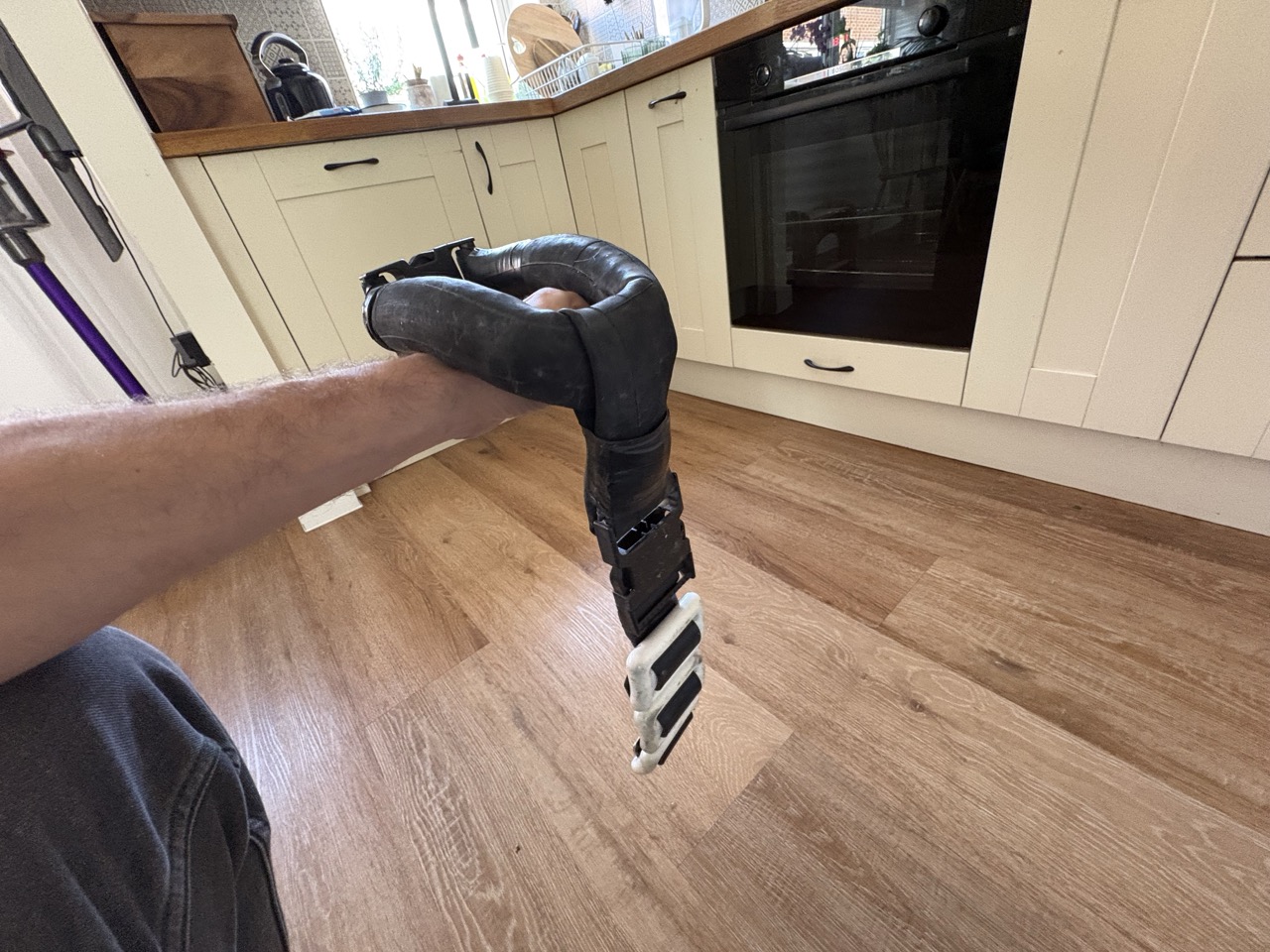

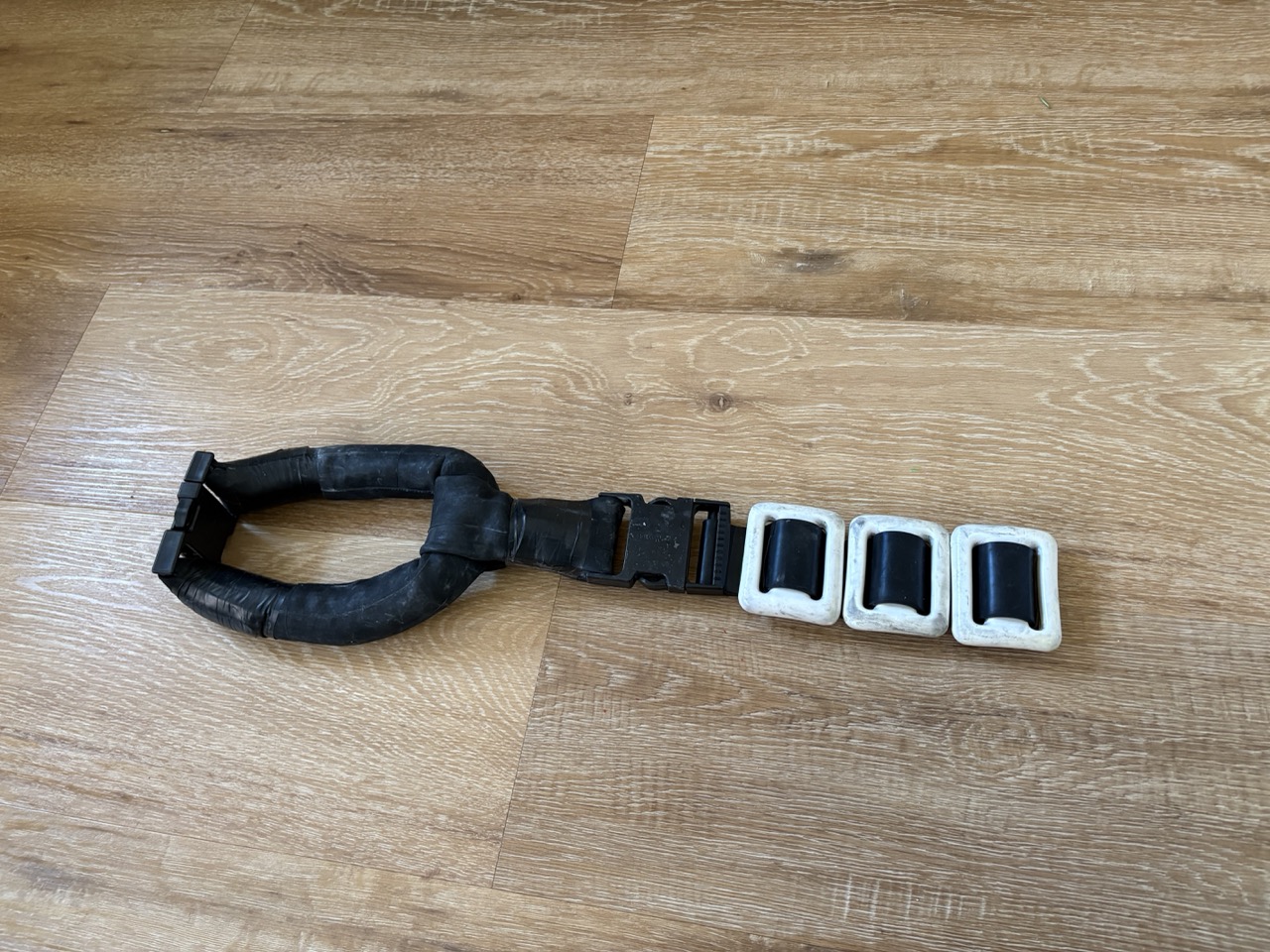

Components laid out	Belt threaded with weights	Finished collar

Type	Hours
Implementation	0.25 h
Waiting	0 h

Material	Quantity	Unit Cost	Line Cost
Bike inner tube (loop) Consumable Small loop that clips to the neck-collar ring	0.1 tube	£6.49 per tube 26in	£0.65
Quick-release buckle (60 mm) Reusable Connects the collar loop to the belt	1 buckle	£2.50 per 60 mm quick-release buckle	£2.50
Weight belt (60 mm) Reusable Carries the dive weights	1 belt	£9.00 per 60 mm nylon weight belt	£9.00
500 g dive weight Reusable Belt-mountable lead weights	3 weight	£10.00 per 500 g lead dive weight	£30.00
Slide stopper (60 mm) Reusable Locks the stack of weights from moving	1 stopper	per 60 mm slide stopper
Total			£42.15

Tool	Purpose
Scissors	Trim inner tube and tidy belt tape ends if needed
Gloves	Keep hands clean while handling lead weights

Make the collar attachment
- Cut a short inner-tube loop sized to clip onto the neck collar ring (from Neck collar – Lead tube).
- Thread both ends through the 60 mm quick-release buckle and close it. This loop is only an anchor point, not a neck strap.
Thread the belt
- Pass the 60 mm belt through the buckle that hangs from the collar attachment.
- Slide on three 500 g weights, clustering them near the buckle end so they sit between shoulder blades.
Lock the weights
- Add the 60 mm slide stopper after the last weight to keep the stack from shifting.
Fit and adjust
- Wear the neck collar, clip in the belt, and snug so weights rest along the upper back.
- Add or remove 500 g weights to hit your target total; the same weights can be reused for depth diving.
