Cutting Template - V1 - Paper Laminate¶
This technique shows how to create a cutting template for fins using laminated paper.
Goal¶
Produce a durable template that matches the foot pocket outline.
Specifications / Dimensions¶
- Sized to the chosen foot pocket and blade design
Reference Images¶
 |
 |
 |
|---|---|---|

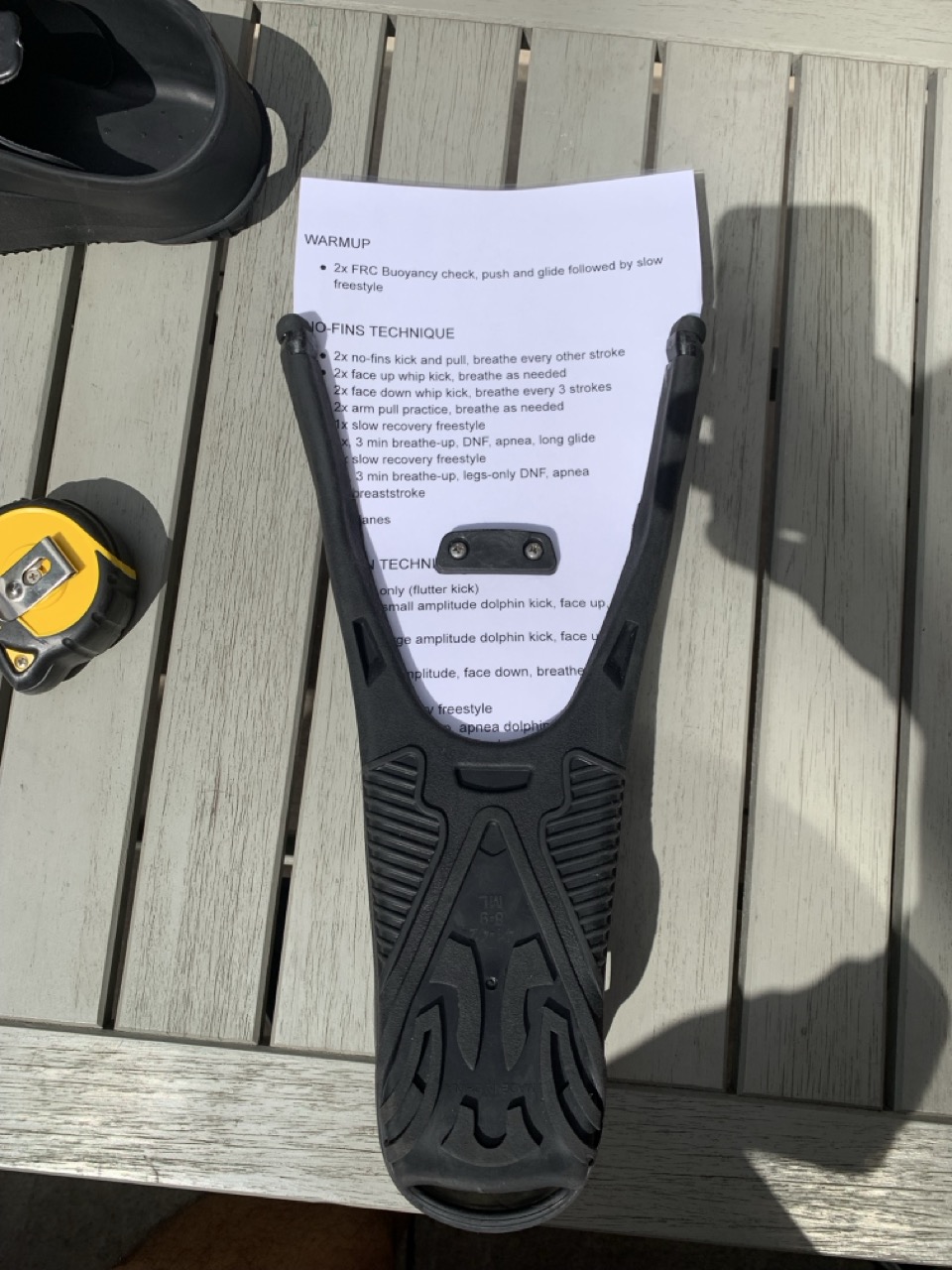

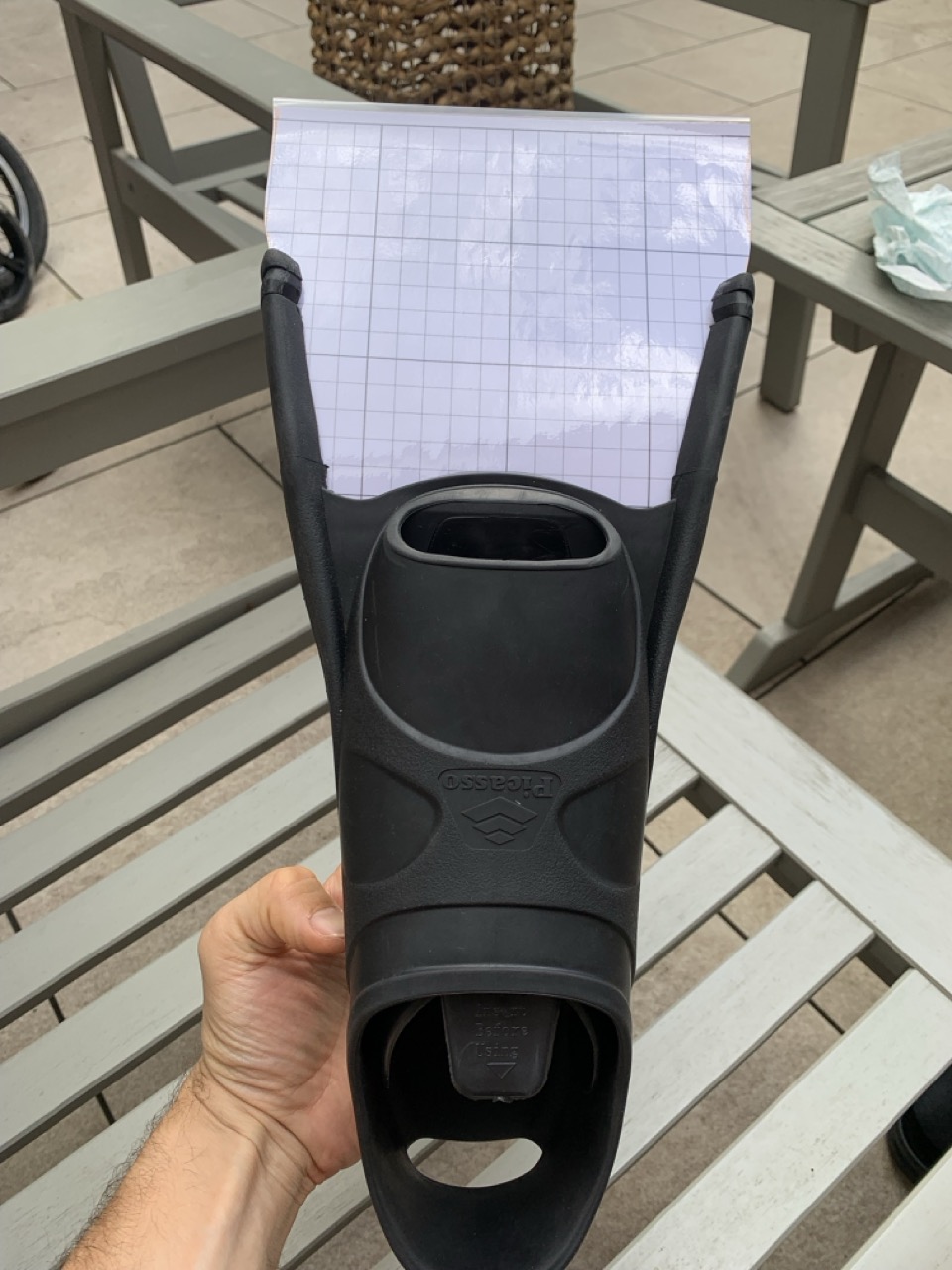

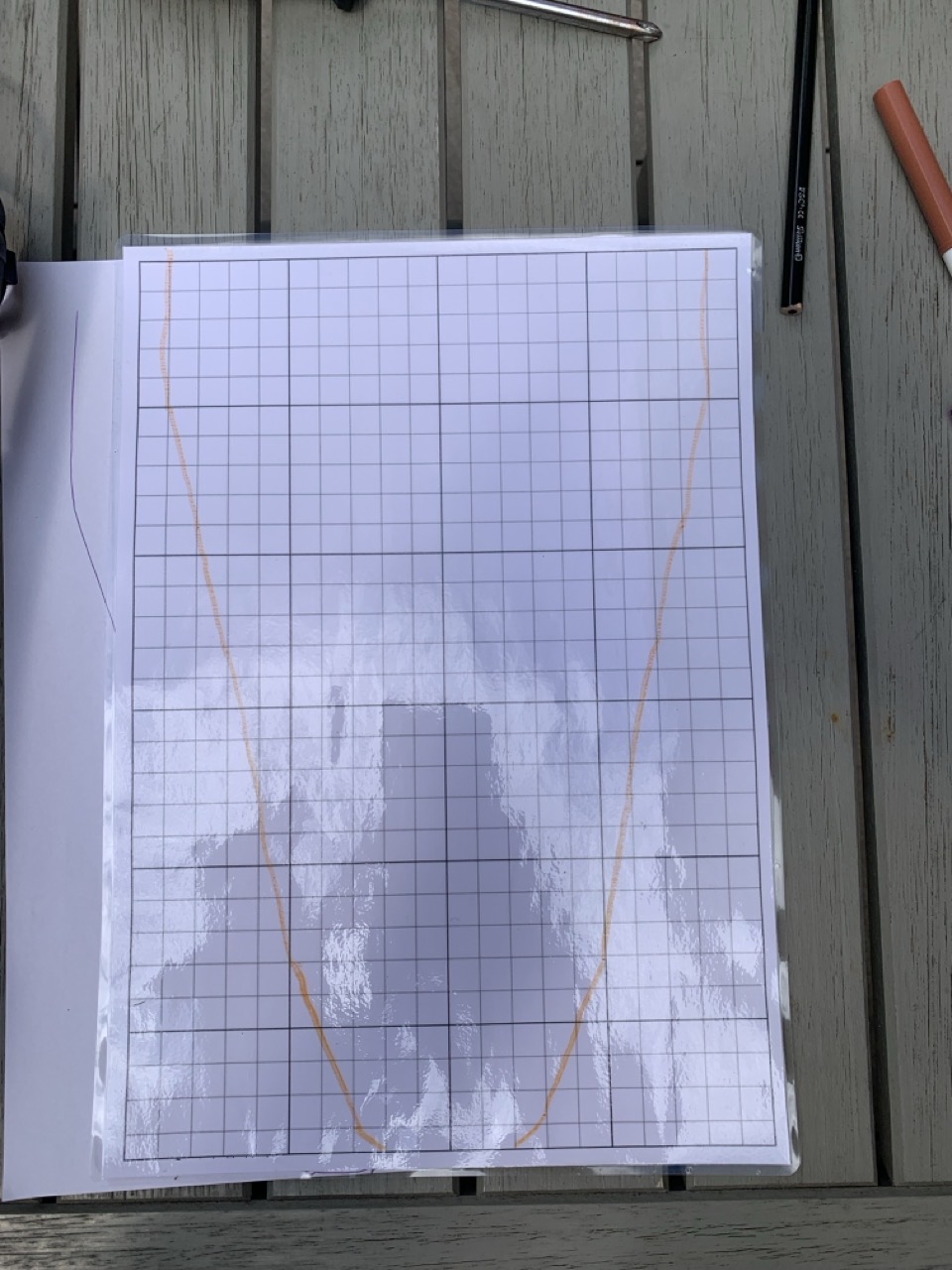

| Paper Template Traced | Cutting Template Back | Cutting Template Front |
Time needed¶
| Type | Hours |
|---|---|
| Implementation | 0.5 h |
| Waiting | 0 h |
Bill of Materials¶
| Material | Quantity | Unit Cost | Line Cost |
|---|---|---|---|
| A4 sheets Consumable 250 gsm sheets for tracing and stiffness |
2 | Inexpensive | |
| Laminating pouches Consumable A4 gloss pouches used as protective film |
1 | Inexpensive |
Tools Required¶
| Tool | Purpose |
|---|---|
| Scissors | Cut materials like fabric, film, or templates to size |
| Pencil | Mark the foot pocket contour onto the laminate |
Instructions (step-by-step)¶
- Print the Template
- Print the provided A4 graph paper: Download the Graph Paper
- Laminate the Paper
- Apply lamination film or clear adhesive sheets to both sides for durability.
- Smooth the film to avoid air bubbles and ensure it adheres properly.
- Trace an approximate contour
- Look at the foot pocket and trace an approximate contour (precision comes later).
- Cut the Template
- Carefully cut along the traced outline using scissors.
- Make sure the edges are smooth and well-defined.
- Verify the Template
- Try to fit the template into a foot pocket.
- Adjust any rough edges to ensure accuracy.
Limitation¶
